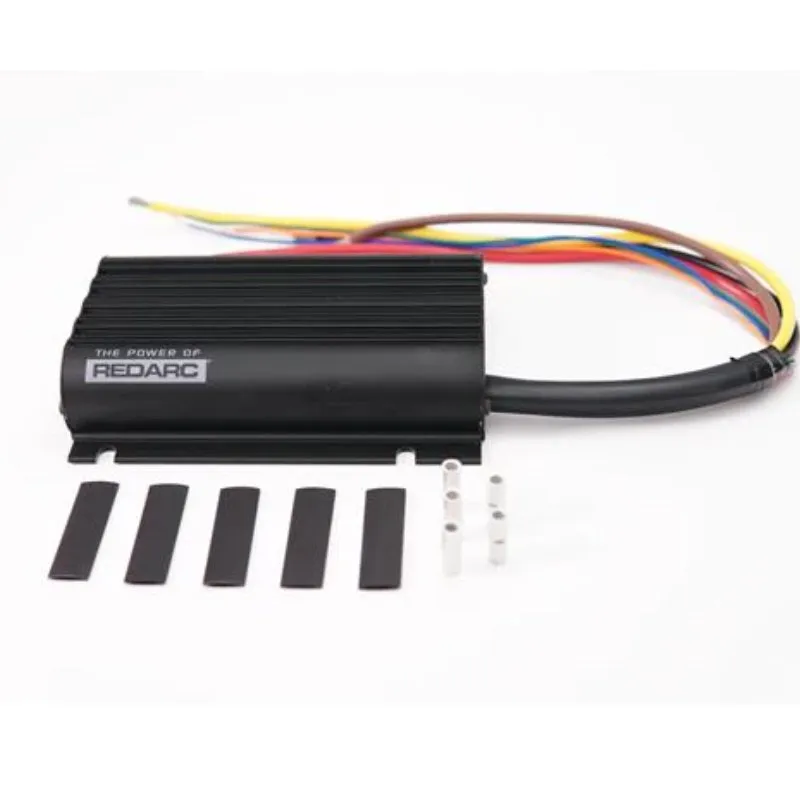

Introducing the REDARC BCDC1240D, a state-of-the-art 12V, 40A In-vehicle DC to DC Battery Charger designed to revolutionize your power management, whether you're on the road or stationary with portable solar panels. This advanced charger employs a multi-stage DC-DC charging system, guaranteeing your auxiliary battery receives the optimal charge it deserves. With an array of features, including solar integration, dual battery isolation, and robust fault protection, it stands as a remarkable addition to your vehicle's power setup. Let's delve into the key features.
-
Multi-Stage Charging: Ensures precise charging tailored to various battery types, enhancing efficiency.
-
Solar Integration: Incorporates Maximum Power Point Tracking (MPPT) solar regulation for maximum solar panel efficiency.
-
Dual Battery Isolation: Safeguards your start battery by preventing discharge below a critical threshold.
-
Reliable and Silent: Operates silently, requires no fan, and boasts full sealing against water and dust infiltration.
-
Versatile Compatibility: Works across a wide operating range and suits both 12V and 24V vehicle systems.
-
Battery Compatibility: Ideal for AGM, Gel, Standard Lead Acid, Calcium, and LiFePO4 batteries.
-
Rugged Endurance: Proven to excel in diverse terrains, including deep water crossings and extreme heat.
-
Optimized Battery Performance: Tailored to maximize auxiliary battery performance and lifespan, suitable for larger battery bank sizes.
-
Australian Craftsmanship: Made with nearly four decades of industry expertise, ensuring resilience in nature's harshest conditions.
| SPECIFICATIONS | |
|---|---|
| Input Voltage | 9 - 32VDC |
| Output Voltage | 12VDC |
| Maximum Charging Voltage | 15.3V |
| Output Current Rating (Cont.) | 40A |
| Output Power | 600W |
| Input Fuse Rating | 60A |
| Output Fuse Rating | 60A |
| Length (in) | 6.50 |
| Width (in) | 4.72 |
| Height (in) | 1.46 |
| Warranty | 2 Years |
| Weight (lb) | 2.3 |
| Standby Current Draw | <8mA |
Want to know more about the REDARC Dual Input 40A In-Vehicle DC Battery Charger?
| to see the RedArc Dual Input 40A IN-Vehicle DC Battery Charger . |
|
Learn how to use the REDARC Dual Input 40A In-Vehicle DC Battery Charger with this informative video!
